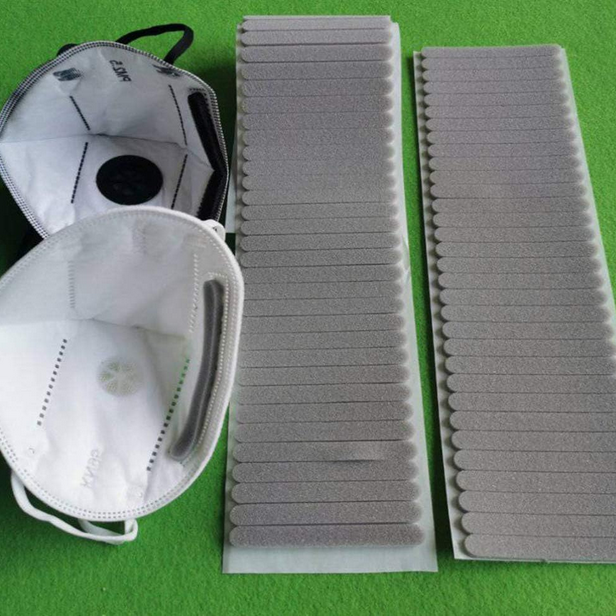

Self-Adhesive Sponge Nose Bridge Pads Protection Strip for Face Mask

Description

Our Self-Adhesive Sponge Nose Bridge Strip (industry code: PU Foam Nose Pad / Mask Seal Cushion) is a high-resilience polyurethane foam strip engineered with a medical-grade, pressure-sensitive adhesive (PSA) backing. Unlike conventional plastic nose bridge strips or aluminum/iron nose clips that rely purely on mechanical deformation, this foam-based solution acts as a compliant gasket. It dynamically conforms to the wearer’s nasal bridge curvature, distributing clamping force across a 10mm-wide surface to eliminate localized pressure points—a primary driver of “mask fatigue” during extended shifts.

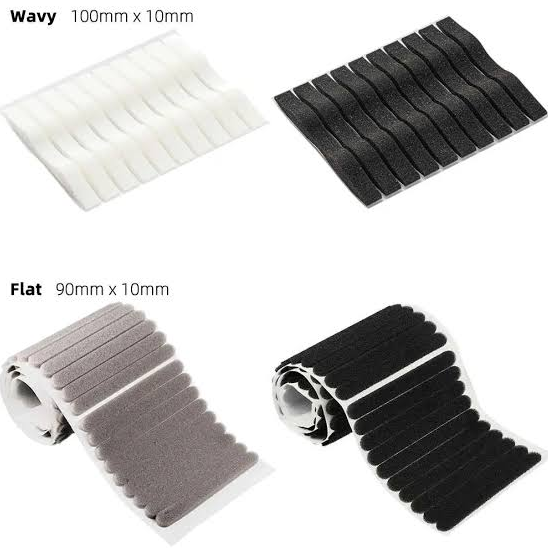

Available in Flat (rectangular) and Wavy (M-shaped pre-contoured) profiles, our stock models (90mm×10mm / 100mm×10mm) are ready for immediate dispatch, while fully OEM customization (length, width, thickness, density, and color) supports bespoke mask architectures.

Beyond “Softness” – The Engineering Edge You Need to Know

B2B buyers often ask: “Why pay more for foam over plastic?” The answer lies in three overlooked engineering metrics that directly impact your brand’s return rate and user reviews:

1. Compression Set Resistance (Durability under sustained use)

Standard EVA or low-density foam collapses under constant pressure (e.g., under safety goggles or prolonged wear), losing its seal within 30 minutes. Our high-resilience PU foam features a compression set of < 8% at 70°C for 22 hours (ASTM D3574 test). This ensures the strip retains >92% of its original thickness even after a full 8-hour work shift, maintaining consistent sealing force against the nose bridge without needing the user to constantly re-adjust.

2. Stress Relaxation & Adhesive Anchoring

Our proprietary acrylic-based PSA is engineered specifically for non-woven polypropylene (PP) and SMS fabrics. It offers an initial tack (loop tack) of > 15 N/25mm to prevent shifting during high-speed automated placement, coupled with a controlled stress-relaxation curve that allows the foam to “creep” and conform to facial movements without delaminating from the mask substrate—even in high-humidity exhalation environments.

3. Thermal Stability in Production

Unlike hot-melt glue strips that require costly heat-press stations (and risk burning thin mask layers), our cold-applied PSA backing eliminates thermal curing time. This translates to direct cost savings: no pre-heating energy consumption, zero heat-related scrap rates, and a 15-20% faster assembly-line throughput for manual or semi-auto placement stations.

Flat vs. Wavy (M-Shaped) – A Technical Selection Matrix for Manufacturers

Choosing the right profile isn’t about aesthetics—it’s about matching the foam’s pre-stress to your mask’s three-dimensional forming process.

Selection Criterion	Flat Type (90x10mm)	Wavy / M-Shaped (100x10mm)
Mask Structural Fit	Designed for flat-fold / 2D masks (e.g., surgical masks, KN95 flat-folds). The uniform strip adapts via user’s manual bending.	Pre-curved for pre-formed / 3D cup masks (e.g., N95 cup-style, molded respirators). The “M” wave provides immediate anatomical pre-tension.
User Interaction	Requires the end-user to pinch and shape around their nose—offers greater adjustability for diverse face shapes.	Delivers a “pre-set” seal out of the box—ideal for professional settings (healthcare) where quick donning is critical.
Fogging Prevention Mechanism	Creates a linear gasket. Effective when the user actively molds it.	The “M” apex naturally bridges the nasal bone and cheekbones, actively diverting exhaled airflow downward away from eyewear—superior passive anti-fog performance.
Stock MOQ & Lead Time	✅ Available in White/Black. MOQ: 50000pcs. Samples: 2 days.	✅ Available in White/Black. MOQ: 50000pcs. Samples: 2 days.

Critical Specifications for Quality Assurance (QA) Teams

For your incoming goods inspection (IGI) and compliance documentation, here are the validated technical parameters:

Base Material	High-resilience Polyurethane (PU) – Ether-based (hydrolysis-resistant, low odor)
Apparent Density	18–22 kg/m³ (optimized for softness vs. structural integrity)
Adhesive Backing	Solvent-free acrylic PSA; Peel adhesion (180°) ≥ 12 N/25mm on PP substrate
Operating Temperature Range	-10°C to 50°C (adhesive remains stable without oozing or hardening)
Regulatory Compliance	REACH, RoHS, and Prop 65 compliant. Biocompatibility (ISO 10993) data available upon request.
HS Tariff Code	8449.00.9000 (Parts of textile machinery/accessories – applicable category for mask components)

Application Scenarios: Where This Component Makes a Critical Difference

• Healthcare (Surgical/N95) : Reduces facial pressure injuries (skin breakdown) reported in ICU staff during pandemic surges—directly correlated with improved wear-time compliance.
• Industrial Safety (Dust/PM2.5) : The foam’s conformability fills the gap over the nasal bridge, preventing unfiltered air bypass—crucial for maintaining the mask’s assigned Protection Factor (APF).
• Fashion/Lifestyle Masks : Eliminates the “clipped nose” look and discomfort associated with internal metal arms, while the black color option offers a premium aesthetic for high-end retail masks.
• Children’s Masks : The 10mm width distributes pressure over a larger area, protecting delicate nasal bones in pediatric users.

Operational & Sourcing Advantages – The NW Fabric Difference

Beyond the physical product, we de-risk your supply chain:

• Zero-Adhesive-Migration Guarantee: Our PSA formula is engineered to prevent “bleed” or migration onto the mask fabric during storage (tested accelerated aging at 60°C for 4 weeks).
• Scalable Customization: Need a 6mm width for pediatric masks? A 120mm length for extra-large respirators? A custom Pantone color? Our rotary die-cutting line supports rapid tooling changes with minimal setup costs.
• Reliable Lead Times: Stock orders ship within 48 hours. Custom orders (tooling approval) ship in 5–7 working days.
• Technical Sales Support: Our in-house polymer engineer is available for joint development sessions—we don’t just sell strips; we solve sealing challenges.

Intelligent Sourcing FAQ

Q1: How do I calculate the correct length for my mask pattern?

Measure the horizontal chord from the upper-left to upper-right edge of your mask’s nose dart. We recommend the strip length to be 10-15mm shorter than the mask width to prevent the rigid edges from poking the wearer’s cheeks. Our 90mm (Flat) and 100mm (Wavy) stock sizes cover 85% of adult mask patterns.

Q2: Does the adhesive lose its stickiness in high-humidity shipping conditions?

No. Our acrylic PSA has a moisture-vapor transmission rate (MVTR) that allows gases to escape while maintaining bond integrity. However, we recommend storing rolls in a dry environment (<70% RH) and using them within 12 months of production for optimal tack.

Q3: Can I run this through my existing automatic mask-making machine (e.g., ultrasonic or heat-sealing lines)?

Yes. While the PSA is cold-applied, the PU foam is thermally stable up to 120°C short-term, meaning it can safely pass through ultrasonic welding stations or moderate heat-tunnel dryers without shrinkage or adhesive degradation. For high-heat processes (>150°C), we recommend a trial run, and we can adjust the foam formulation to a heat-stabilized variant.

Q4: What’s the difference between your PU foam and cheap EVA foam strips?

EVA (Ethylene-Vinyl Acetate) is thermoplastic and closed-cell—it offers no breathability and lacks “memory.” Once crushed, it stays crushed. Our PU foam is open-cell with a memory-recovery function. This means it recovers its shape after compression, providing reusable sealing performance across multiple don/doff cycles, whereas EVA becomes permanently deformed after the first heavy use.

Ordering & Logistics Quick Reference

• Stock Models: Flat (90x10mm) / Wavy (100x10mm) – White & Black.
• Packaging: Standard export carton (inner PE bag + outer corrugated box) or reel-winding per your automated feeder requirements.
• Sample Policy: Complimentary A5-sized samples (approx. 20 strips) available for fit and adhesion testing. Freight collect.
• Get a Quote: Provide your annual projected usage (or monthly consumption), target price point, and preferred shipping port (Ningbo/Shanghai) for the most competitive FOB/CIF pricing.

NW Fabric Company – Polymer Solution Partner
We don’t just supply components; we co-engineer comfort and seal integrity for the world’s leading mask brands. Contact our technical sales desk for a consultation on your specific mask design.
